Motor Linear motor coil
The system structure of linear motor coil is different from that of rotary motor. The rotating motor is often converted into linear motion by rotating parts such as lead screw and belt pulley···

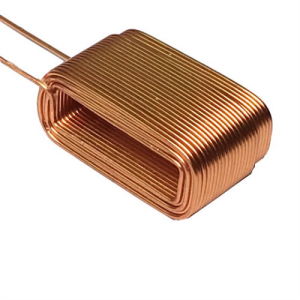

Linear motor coil
Linear motor coil is a special coil for linear motor, motor linear motor coil is a direct conversion of electrical energy into linear motion mechanical energy of the electric transmission device···
Motor inductor
The linear motor coil is widely used in the market at present, mainly sliding rails, linear platforms, transmission platforms, robotic arms, automatic robots, etc···
TDK motor coil
TDK motor linear motor coil size parameters (mm) inner diameter 9.1x9.1x9.1 outer diameter 14x14x14 height 2.9 wire diameter 0.23 turns 120 inductance 156uh resistance 2 ohm winding clockwise product introduction linear motor coil···
Rotating motor coil
Rotating motor coil size parameters (mm) Inner diameter 21.2x24x24 Outer diameter 32.5x35.5x35.5 Height 5.8 Wire diameter 0.5 turns 120 inductance 443uh resistance 1 ohm winding counterclockwise···
Bobbin Coil
Skeleton coils are generally composed of windings, skeletons, magnetic cores, shielding covers, etc. The supports of skeleton coils have different shapes and are made of materials such as glued laminated wood···
Motor coil
Motor coil refers to several connected coils that generate a magnetic field after passing current. The linear motor coil of a motor undergoes electromagnetic conversion in a specific environment···
